| Shell structure | IP65; Shell: aluminum alloy, IP42: |
| Sensor interface | Excitation voltage: 5V DC, driving up to 8 350Ω sensors. Input signal range: +20mV. |
| A/D processing | 24-bit high-precision low-temperature drift Σ-Δ conversion chip. 100Hz sampling rate. |
| Baud rate | 4800/9600/19200/38400/57600/115200 |
| resolution ratio | Maximum use division: 20000d, minimum resolution 0.3 UV/d.. |

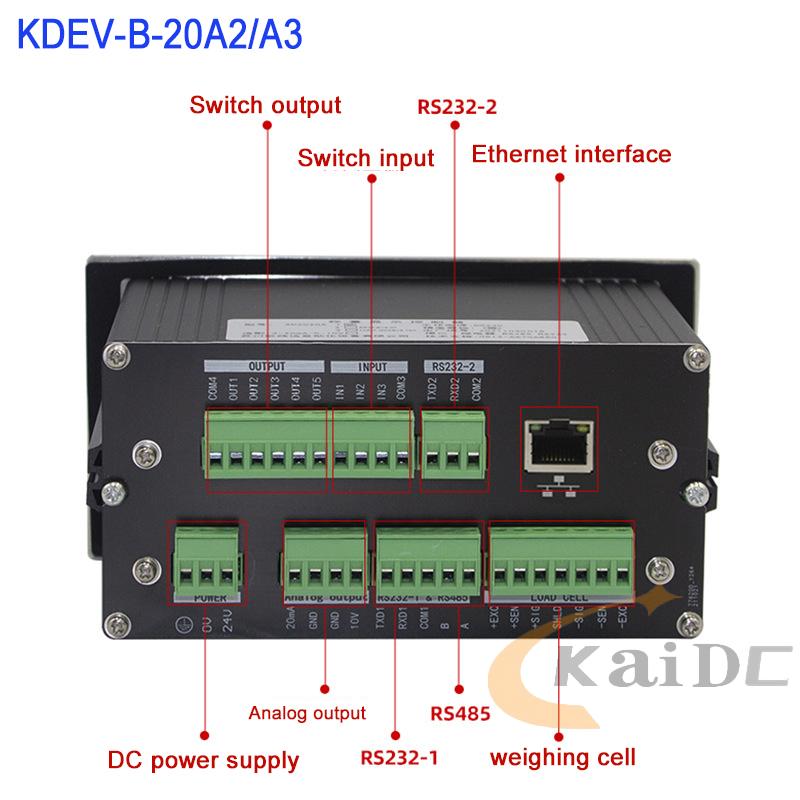

| Switch input | 3 photoelectric isolated light input points. Dry contact input, effectively shorted with public terminal. |
| Switch output | 5 relay outputs. Load capacity is 30VDC/5A. |
| communication interface | Road isolation RS232/RS485; 1 RS232 interface; TCP/IP interface (RJ45) |
| protocol | Continuous output format, MODBUS-RTU; MODBUSTCP/IP,MODBUS UDP/IP |
| Modulus quasi-quantity | Optional (4~20mA/0-10V) |
